American Beauty® Little Dandy Soldering Irons

These Pencil-Style Soldering Irons Define Quality!
Designed and built to give top performance under the most demanding production line conditions and to withstand rugged usage in all maintenance and repair operations. Plug-type tip is seated deep in element for quick heat transfer. Modular design provides for easy maintenance.
    Features & Benefits:
    • Ni-Chrome Wound Heating Element - Proven industry's most reliable heating element.
    • Paragon® Iron-Clad Tips - Outlasts ordinary tips many times over!
    • Iron Uses Plug-Type Tips - Superior heat transfer. Minimizes maintenance.
    • Intricate Thermal Management Design - Baffles deflect heat from handle.
    • Air-Cooled Finger Grip - Improves operator comfort; pencil-style gives precise control.
    • Modular Construction - Easy replacement of any part.

Little Dandy Pencil-Style Soldering Iron
Model 3108

Common Applications: Ideal for soldering miniature and small electronic connections, printed circuit board work and integrated circuits.

Specifications:

  • WATTAGE - 20, 25, 30 Watts
  • REPLACEMENT HEATING ELEMENT NUMBER - 9014
  • MAXIMUM TIP TEMPERATURE (F) - 805°F, 900°F, 970°F
  • MAXIMUM TIP TEMPERATURE (C) - 429°C, 482°C, 521°C
  • OVERALL LENGTH - 6½" (16.5cm)
  • TIP SHANK DIAMETER - 1/8" (3.18mm)
  • TIP LENGTH - 2¼" (5.27cm)
  • PRODUCT WEIGHT - 2 oz. (56.7g)
  • SHIPPING WEIGHT - ½"lb. (226.7g)

The following Paragon® tip comes standard with this item:

  • 501 - Paragon Soldering Iron Tips

We also offer the following additional Paragon® tips for this item: 502, 503, 505, 507, 510, 512

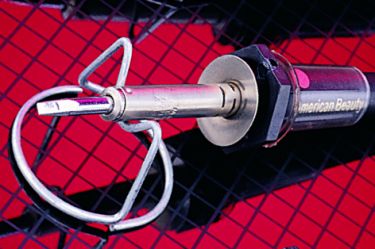

Little Dandy Pencil-Style Soldering Iron

Little Dandy Pencil-Style Soldering Iron
Model 3110

Common Applications: Perfect for soldering small to medium electronic and electrical connections.

Specifications:

  • WATTAGE - 25, 30, 35 Watts
  • REPLACEMENT HEATING ELEMENT NUMBER - 9010
  • MAXIMUM TIP TEMPERATURE (F) - 835°F, 890°F, 940°F
  • MAXIMUM TIP TEMPERATURE (C) - 446°C, 477°C, 504°C
  • OVERALL LENGTH - 6½" (16.5cm)
  • TIP SHANK DIAMETER - 3/16" (4.72mm)
  • TIP LENGTH - 2¼" (5.27cm)
  • PRODUCT WEIGHT - 3 oz. (85g)
  • SHIPPING WEIGHT - ½"lb. (226.7g)

The following Paragon® tip comes standard with this item:

  • 618 - Paragon Soldering Iron Tips

We also offer the following additional Paragon® tips for this item: 604, 605, 607, 610, 613, 615, 617, 625, 627, 630, 643, 646

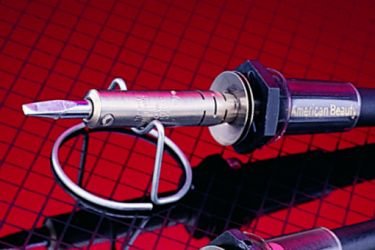

Little Dandy Pencil-Style Soldering Iron

Little Dandy Pencil-Style Soldering Iron
Model 3112

Common Applications: The right soldering iron for soldering electrical and electronic connections such as lugs and posts. Enough heat for light to intermediate sheet metal and leaded glasswork.

Specifications:

  • WATTAGE - 40, 50, 60 Watts
  • REPLACEMENT HEATING ELEMENT NUMBER - 9012
  • MAXIMUM TIP TEMPERATURE (F) - 950°F, 1050°F, 1130°F
  • MAXIMUM TIP TEMPERATURE (C) - 510°C, 566°C, 610°C
  • OVERALL LENGTH - 7¾" (19.7cm)
  • TIP SHANK DIAMETER - 1/4" (6.35mm)
  • TIP LENGTH - 2¼" (5.27cm)
  • PRODUCT WEIGHT - 4½ oz. (127.6g)
  • SHIPPING WEIGHT - ½"lb. (226.7g)

The following Paragon® tip comes standard with this item:

  • 720 - Paragon Soldering Iron Tips

We also offer the following additional Paragon® tips for this item: 701, 703, 704, 706, 714, 715, 716, 721, 724, 730, 738, 739, 749

Little Dandy Pencil-Style Soldering Iron
