American Beauty® Replacement Electrodes & Elements

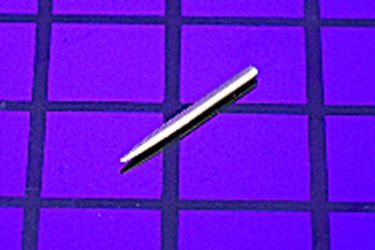

Model 105134

Specifications:

  • 0.5" Nickel-Chrome, .04"Dia.,(1x12.7mm)
  • Six Per Package

Weight: 0.2LBS (0.09KGS)

Used with the following tool:

  • 105133 - Micro-Tweezer Handpiece

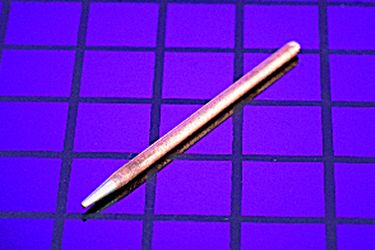

Model 10542

Specifications:

  • 1.5" Stainless Steel, 5/64" Diameter (2x38.1mm)
  • Six Per Package

Weight: 0.2LBS (0.09KGS)

Used with the following tool:

  • 10541 - Regular Tweezer Handpiece

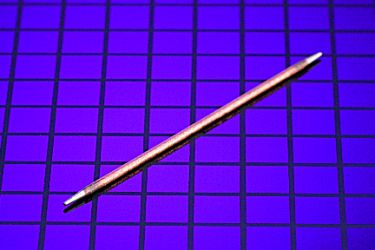

Model 10582

Specifications:

  • 3" Stainless Steel, 5/64 Diameter (2x76.2mm)
  • Six Per Package

Weight: 0.5LBS (0.225KGS)

Used with the following tools:

  • 10552 - 5/64" Diameter Single Stainless Steel Handpiece
  • 10578 - Ultra-Light Fixed Dual-Electrode Handpieces

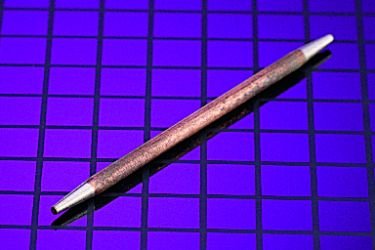

Model 10594

Specifications: 3" Stainless Steel, 1/8" Dia., (3.2x76.2mm) Six Per Package

Weight: 0.5LBS (0.225KGS)

Used with the following tools:

  • 105127 - Medium Tweezer Handpiece
  • 10572 - 1/8" Diameter Single Carbon Handpiece
  • 10590 - Regular Dual-Electrode Soldering Handpiece
  • 10595 - Panel Attachement for 100 and 250 Watt Power Units

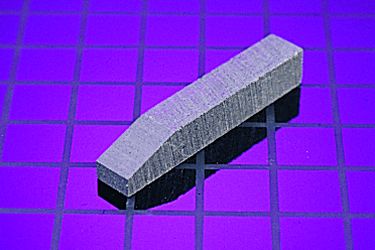

Model 105159

Specifications:

  • 2" x ¼" x ¼" Carbon Block Electrodes, (50.8x6.4x6.4mm)
  • Two Per Package

Weight: 0.2LBS (0.09KGS)

Used with the following tools:

  • 105158 - Small High-Heat Carbon Pliers Handpiece
  • 105258 - Medium High-Heat Carbon Pliers Handpiece

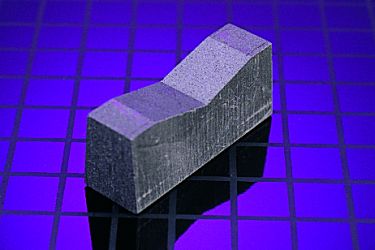

Model 10565

Specifications:

  • 1 ½" x ½" x 5/8" Concave Carbon Block, (38x13x16mm)
  • Two Per Package

Weight: 0.2LBS (0.09KGS)

Used with the following tool:

  • 10587 - Heavy-Duty High-Heat Carbon Pliers Handpiece

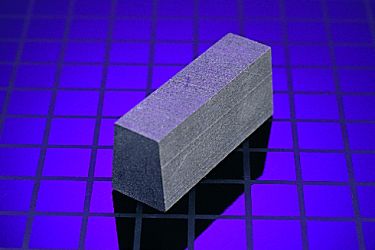

Model 10566

Specifications:

  • 1 ½" x ½" x 5/8" Flat Carbon Block (38x13x16mm)
  • Two Per Package

Weight: 0.2LBS (0.09KGS)

Used with the following tool:

  • 10588 - Heavy-Duty Carbon Fork-Type Handpiece

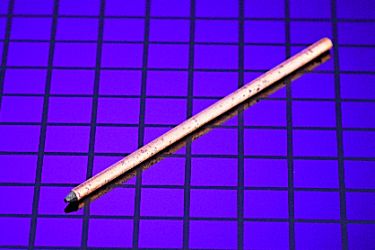

Model 10530

Specifications:

  • 3" Carbon, 3/32" Dia.,(2.38x76.2mm)
  • Six Per Package

Used with the following tool:

  • 10515 - 3/32" Diameter Single Carbon Handpiece

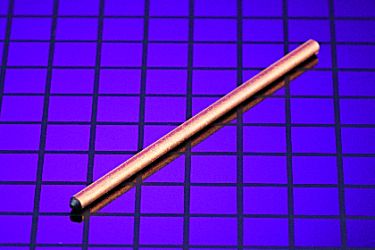

Model 10524

Specifications:

  • 3" Carbon, 1/8" Dia.,(3.18x76.2mm)
  • Six Per Package

Weight: 0.2LBS (0.09KGS)

Used with the following tools:

  • 105127 - Medium Tweezer Handpiece
  • 10572 - 1/8" Diameter Single Carbon Handpiece
  • 10590 - Regular Dual-Electrode Soldering Handpiece

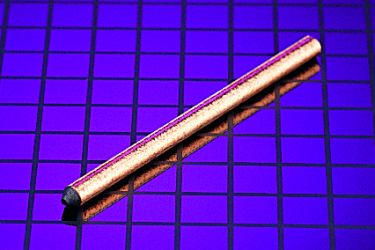

Model 10525

Specifications:

  • 3" Carbon, 3/16" Dia.,(4.72x76.2mm)
  • Six Per Package

Weight: 0.5LBS (0.225KGS)

Used with the following tool:

  • 10573 - 3/16" Diameter Single Carbon Handpiece

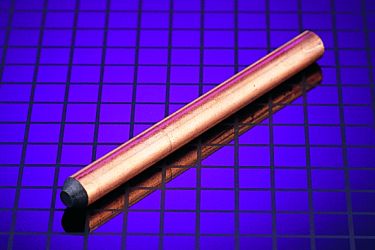

Model 10526

Specifications:

  • 3" Carbon, ¼" Dia.(6.35x76.2mm)
  • Six Per Package

Weight: 0.5LBS (0.225KGS)

Used with the following tool:

  • 10511 - Standard 1/4" Diameter Single Carbon Handpiece

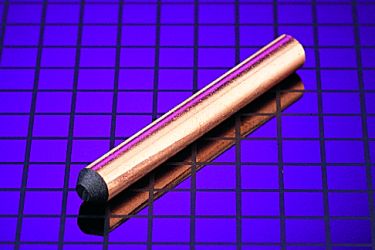

Model 10527

Specifications:

  • 3" Carbon, 3/8" Dia.(9.53x76.2mm)
  • Six Per Package

Weight: 0.5LBS (0.225KGS)

Used with the following tools:

  • 10513A - Panel Attachement for 1,100 Watt Power Unit
  • 10513B - Panel Attachement for 1,800 Watt Power Unit

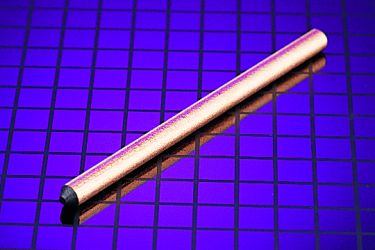

Model 10549

Specifications:

  • 4" Carbon, ¼" Dia.,(6.35x101.6mm)
  • Six Per Package

Weight: 0.5LBS (0.225KGS)

Used with the following tool:

  • 10511 - Standard 1/4" Diameter Single Carbon Handpiece

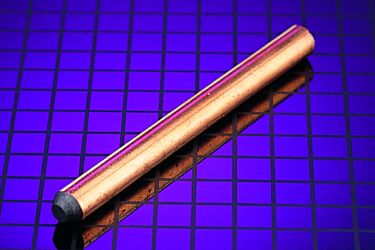

Model 10550

Specifications:

  • 4" Carbon, 3/8" Dia.,(9.52 x 101.6mm)
  • Six Per Package

Weight: 0.5LBS (0.225KGS)

Used with the following tools:

  • 10513A - Panel Attachement for 1,100 Watt Power Unit
  • 10513B - Panel Attachement for 1,800 Watt Power Unit

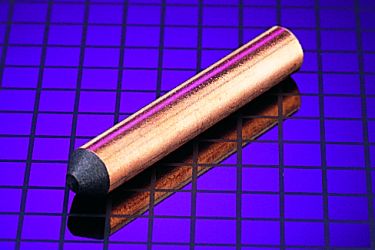

Model 10534

Specifications:

  • 3" Carbon, ½" Dia., (12.7x76.2mm)
  • Six Per Package

Weight: 0.6LBS (0.27KGS)

Used with the following tools:

  • 10536 - 1/2" Diameter Heavy-Duty Single Carbon Handpiece
  • 10588 - Heavy-Duty Carbon Fork-Type Handpiece

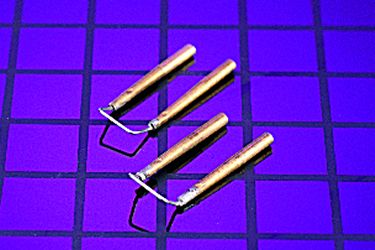

Model 105156

Specifications:

  • 5/8" Nickel-Chrome w/.018" cross-section, (15.9mm x .46mm)
  • Element at 90ºangle.
  • Two Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 105131 - Micro Wirestripping Handpiece

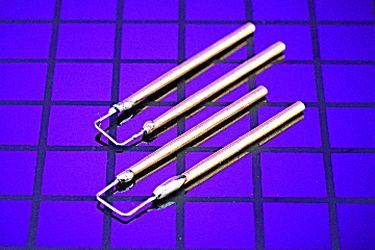

Model 105132

Specifications:

  • 1 1/8" Nickel-Chrome w/.018" cross-section, (33.5mm x .46mm)
  • Element at 45ºangle.
  • Two Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 105131 - Micro Wirestripping Handpiece


Model 10520

Specifications:

  • Flat-Blade Nickel-Chrome Element,
  • Two Per Package, both w/Center Notch

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 10517 - Regular Wirestripping Handpiece

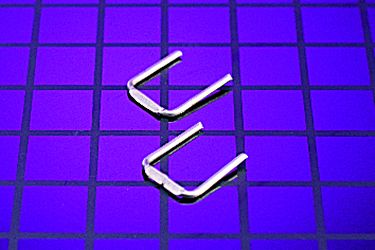

Model 10529

Specifications:

  • Flat-Blade Nickel-Chrome Element,
  • Two Per Package,one w/Center Notch

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 10517 - Regular Wirestripping Handpiece

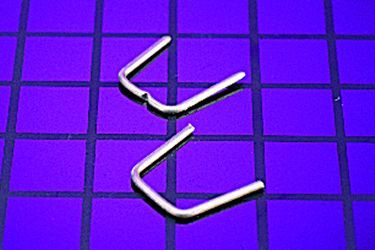

Model 10545

Specifications:

  • Round Blade Nickel- Chrome Element
  • Two Per Package, one w/ Center Notch

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 10517 - Regular Wirestripping Handpiece

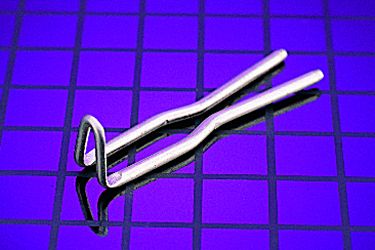

Model 10593

Specifications:

  • Small, Single-Loop V-Notch Nickel- Chrome Element
  • One Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 10591 - Small V-Notch Wirestripping Handpiece

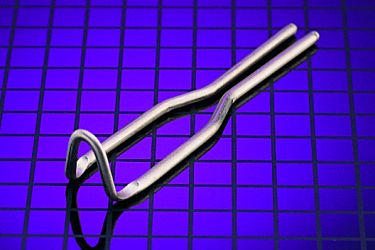

Model 10596

Specifications:

  • Large, Single-Loop V-Notch Nickel-Chrome Element
  • One Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 10597 - Large V-Notch Wirestripping Handpiece

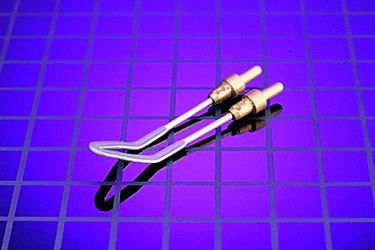

Model 105143

Specifications:

  • 1 5/8" Long Reflow Element (41.3mm)
  • One Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

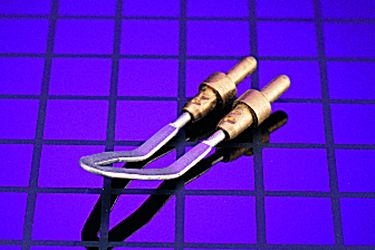

Model 105146

Specifications:

  • 1 3/8" Long Reflow Element (34.9mm)
  • One Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:


Model 105147

Specifications:

  • Reflow element for flat packs on circuit board rework and "scarfing"
  • One Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

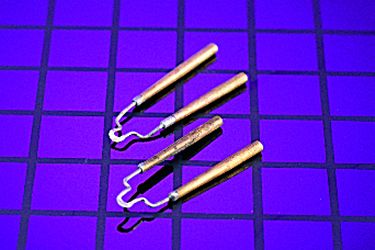

Model 105157

Specifications:

  • SMD element with 24 AWG Nickel-Chrome from larger two-sided flat-pack SMDs
  • Two Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 105131 - Micro Wirestripping Handpiece

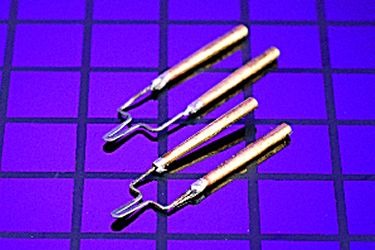

Model 105160

Specifications:

  • SMD element with .0635" pad for smaller two-sided flat-pack SMDs
  • Two Per Package

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 105131 - Micro Wirestripping Handpiece

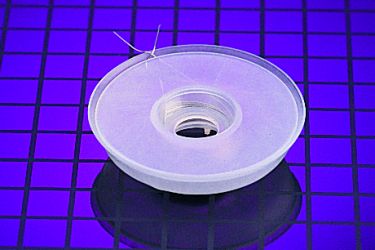

Model 10531

Specifications:

  • 10ft. Nickel-Chrome Wire, wound on one plastic bobbin.
  • .012" Dia (.3mm)

Weight: 0.1LBS (0.045KGS)

Used with the following tool:

  • 105123 - Micro Soldering Probe
