Resistance Soldering Hobby Systems

Resistance Soldering Hobby Systems

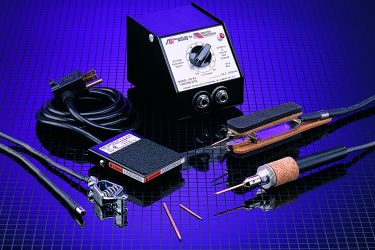

Light Capacity Resistance Soldering Hobby System Model 105HCS Common Applications: For brass models, track, kit bashing and scratch builds. Components: 105A3 - 100 Watt Resistance Soldering Power Unit 10541 - Regular Tweezer Handpiece 10515 - 3/32" Diameter Single Carbon Handpiece 10542 - Electrodes 10530 - Electrodes 10512 - Leads for Return Current - Standard Clamp 10519 - Footswitch Specifications: 100W (2.65VAC) Power unit with Infinitely Variable Output control, Pilot light, 1 AMP Circuit Protection & Heavy-duty aluminum case, Available in 110 or 220V. Durable, User-friendly hand pieces with four foot (1.22m) cord sets. Copper clad, stainless steel electrodes, 5/64" (1.98mm)Dia., 1-1/2" Lgth. Easily customizable with approx. 3/8" opening upon shipping. Rugged, Industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug. Weight: 6.0LBS (2.7KGS) Replacement Electrodes: Model # 10542, 10530 See Product Data Sheet

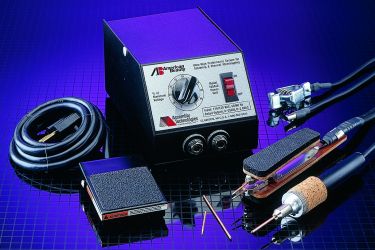

Standard Capacity Resistance Soldering Hobby System Model 105HCM Common Applications: For brass models, track, kit bashing and scratch builds. Components: 105A12 - 250 Watt Resistance Soldering Power Unit 10541 - Regular Tweezer Handpiece 10515 - 3/32" Diameter Single Carbon Handpiece 10542 - Electrodes 10530 - Electrodes 10512 - Leads for Return Current - Standard Clamp 10519 - Footswitch Specifications: 250W (2.8VAC) Power unit with Infinitely Variable Output control, Lighted Rocker, 3 AMP Circuit Breaker & Heavy-duty aluminum case, Available in 110 or 220V. Durable, User-friendly hand pieces with four foot (1.22m) cord sets. Copper clad, stainless steel electrodes, 5/64" (1.98mm) Dia., 1-1/2" Lgth. Easily customizable with approx. 3/8" opening upon shipping. Rugged, industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug. Weight: 9.7LBS (4.365KGS) Replacement Electrodes: Model # 10542, 10530 See Product Data Sheet

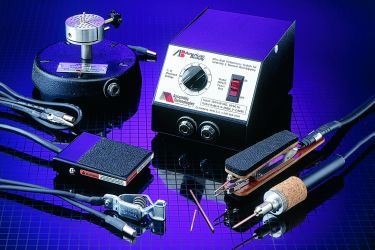

Deluxe Resistance Soldering Hobby System Model 105HHH Common Applications: For brass models, track, kit bashing and scratch builds. Components: 105A12 - 250 Watt Resistance Soldering Power Unit 10541 - Regular Tweezer Handpiece 10515 - 3/32" Diameter Single Carbon Handpiece 10542 - Electrodes 10530 - Electrodes 10512 - Leads for Return Current - Standard Clamp 10519 - Footswitch 105V12 - Grounding Vise for Holding Parts Hands-Free Specifications: 250W (2.8VAC) Power unit with Infinitely Variable Output control, Lighted Rocker, 3 AMP Circuit Breaker & Heavy-duty aluminum case, Available in 110 or 220V. Durable, User-friendly hand pieces with four foot (1.22m) cord sets. Copper clad, stainless steel electrodes, 5/64" (1.98mm) Dia., 1-1/2" Lgth. Easily customizable with approx. 3/8" opening upon shipping. Rugged, industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug. Weight: 13.2LBS (5.94KGS) Replacement Electrodes: Model # 10542, 10530 See Product Data Sheet
