Our hand pieces are designed and built to provide absolute performance in even the toughest environments.
Resistance Soldering and Wirestripping hand pieces provide instantaneous localized heat to help you handle all of your difficult soldering needs.

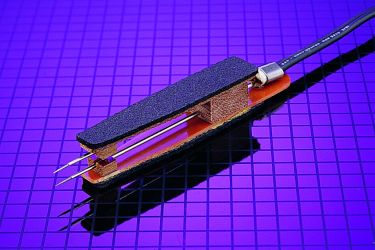

Lightweight tool designed for micro-soldering applications in limited space; well suited for work on conncections with wire 22 AWG and finer.
Included in system:
- 10599 - Micro Tweezer-Style Resistance Soldering System
Specifications:
- 6-1/2" (16.5cm) total length, 4 ft. cord
- Copper-clad, stainless steel electrodes, .040" (1.02mm) diameter
- Electrodes may be formed, notched or gound to fit specific applications
- Taper pin connection style
Weight: 0.5LBS (0.225KGS)
Replacement Electrodes: Model # 105134
Ideal tool for intricate soldering applications, combining intense heat with precise contact points.
Included in systems:
- 10501 - Light Capacity Tweezer-Style Resistance Soldering
- 10502 - Standard Capacity Tweezer-Style Resistance Soldering System
- 105HCS - Light Capacity Resistance Soldering Hobby System
- 105HCM - Standard Capacity Resistance Soldering Hobby System
- 105HHH - Deluxe Resistance Soldering Hobby System
Specifications:
- 5" (12.7cm) total length, 4 ft. cord
- Taper Pin connection style
- Copper-clad, stainless steel electrodes .078" (1.98mm) diameter
- Electrodes may be formed, notched or ground to fit specific applications
- Space between electrodes is 3/8" (9.53mm)before any modifications
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10542

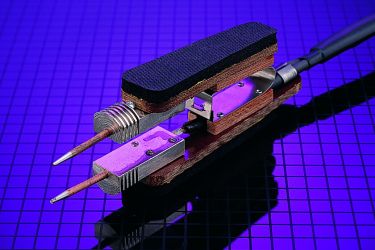

Our most popular tool this rugged performer is excellent for antenna leads, semi-rigid co-ax, heavy-gauge wire, terminals, lugs, posts, etc.
Included in system:
- 10504 - High Capacity Tweezer-Style Resistance Soldering System
Specifications:
- 7" (17.75cm) total length, 4 ft. 10 AWG high-strand DLO cable
- Copper-clad, stainless steel electrodes, .125" (3.18mm) diameter
- Approxiamate 1/2" opening between electrodes upon shipping
- Electrodes may be formed, notched or gound to fit specific applications
- Taper pin connection style
Weight: 2.0LBS (0.9KGS)
Replacement Electrodes: Model # 10594
Ideal when absolute repeatability is desired.
Specifications:
- 6" (15.3cm) total length, 4 ft. cord
- Taper Pin connection style
- Copper-clad, stainless steel electrodes .078" (1.98mm) diameter
- Electrodes may be formed, notched or ground to fit specific applications
- Space between electrodes is 1/8" (3.25mm)before any modifications
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10582
Ideal when repeatability is desired
Specifications:
- 7-1/2" (19cm) total length, 4 ft. 10 AWG high-strand DLO cable
- Copper-clad, stainless steel electrodes, .125" (3.18mm) diameter
- Approxiamate 3/8" opening between electrodes upon shipping
- Electrodes may be formed, notched or gound to fit specific applications
- Taper pin connection style
Weight: 1.5LBS (0.675KGS)
Replacement Electrodes: Model # 10594
Lightweight tool for soldering in areas inaccessible to tweezer style handpieces. Perfect for seems & spots.
Included in systems:
- 10508 - Light Capacity Single Probe Resistance Soldering System
- 105HCS - Light Capacity Resistance Soldering Hobby System
- 105HCM - Standard Capacity Resistance Soldering Hobby System
- 105HHH - Deluxe Resistance Soldering Hobby System
Specifications:
- 6"(15.3cm) total length, 4 ft. cord
- Supplied with 3/32" (2.38mm) diameter copper-clad carbon electrodes
- Ground Lead Required, Model 10512A recommended
- Taper pin connection style
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10530
Sturdy single carbon tool designed to handle a general assortment of soldering applications, rework and repair.
Included in system:
- 10509 - High Capacity Single Probe Resistance Soldering System
Specifications:
- 8" (20.4cm) total length, 4 foot cord
- Return lead is required, Model 10512 recommended
- Accepts electrodes either straight or at a 45° angle
- Supplied with 1/4" diameter copper clad carbon electrode.
- Taper pin connection style
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10549
Lightweight handpiece for micro-soldering in areas inaccessible to tweezer style handpieces.
Specifications:
- 6"(15.3cm) total length, 4 ft (1.22m) cord
- Ground Lead required, Model 10512A recommended
- .125" (3.18mm) diameter copper-clad carbon electrodes that may be ground to fit specific applications.
- Taper pin connection style
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10524
Lightweight tool for soldering in areas inaccessible to tweezer-style handpieces
Specifications:
- 6"(15.3cm) total length, 4 ft. cord
- Ground Lead required, Model 10512A recommended
- 3/16" (3.18mm) diameter copper-clad carbon electrodes that may be ground to fit specific applications.
- Taper pin connection style
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10525
Lightweight handpiece for micro-soldering in areas inaccessible to tweezers handpieces.
Specifications:
- 6"(15.3cm) total length, 4 ft. cord
- Ground Lead required, 10512A recommended
- 3/16" (3.18mm) diameter copper-clad carbon electrodes that may be formed, notched or ground to fit specific applications.
- Taper pin connection style
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10582
Rugged tool designed to handle your extra heavy work.
Specifications:
- 7-1/2"(19.1cm) total length, 4 ft (1.22m)
- 1/2" (12.7mm) diameter copper-clad carbon electrodes that may be ground to fit specific applications.
- Ring Terminal connection style
- Ground Lead required, Model 10537 recommended
Weight: 2.0LBS (0.9KGS)
Replacement Electrodes: Model # 10534

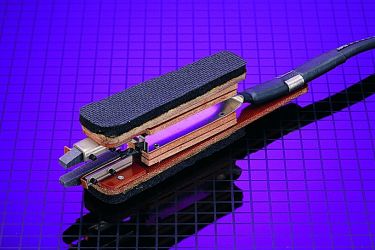

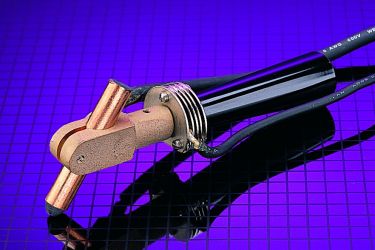

Carbon electrodes provide you more intense heat than our standard copper-clad stainless steel. Ideal for applications involving small sized parts (3/16") but large heat-sinks.
Included in system:
- 10506 - Standard Capacity Plier-Style Resistance Soldering System
Specifications:
- 5"(12.7cm) total length, 4 ft (1.22m)
- Taper Pin connection style
- Ring Terminal attachement style available upon request
Weight: 2.0LBS (0.9KGS)
Replacement Electrodes: Model # 105159
This is a heavy-duty version of the Model 105158 to better handle the higher current loads required for some larger industrial applications.
Included in system:
- 10507 - High Capacity Plier-Style Resistance Soldering System
Specifications:
- 7"(17.75cm) total length, 4 ft (1.22m) cord
- Taper Pin connection style
- Ring Terminal attachement style available upon request
- Compatible with 105C1 Power Unit and higher with modification to Ring Terminal attachement style
Weight: 2.5LBS (1.125KGS)
Replacement Electrodes: Model # 105159
Based upon internal testing and customer response these are the highest quality & best performing large resistance soldering handpiece available on the market today.
Included in systems:
- 10505 - Industrial Capacity Plier-Style Resistance Soldering System
- 10557 - Medium-Duty Resistance Soldering Plumbing System
- 10577 - Heavy-Duty Resistance Soldering Plumbing System
Specifications:
- Please adhere to 50% Duty Cycle
- Length 10"(25.4cm), 10ft (3.05m)
- Connects to Power Unit via Ring Terminals
Weight: 5.0LBS (2.25KGS)
Replacement Electrodes: Model # 10565

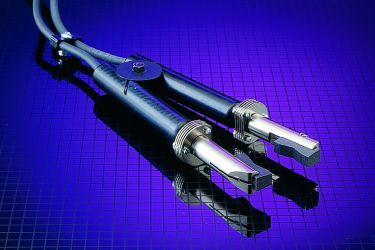

A modification of our popular Model 10587 handpiece. Based upon internal testing and customer response these are the highest quality & best performing large resistance soldering handpiece available on the market today.
Specifications:
- Connects to Power Unit via Ring Terminals
- Length 10"(25.4cm), 10ft (3.05m)
- Please adhere to 50% Duty Cycle
Weight: 5.0LBS (2.25KGS)
Replacement Electrodes: Model # 10534
Extremely lightweight hand piece strips plastics, including Teflon? for wires 24 AWG and finer.
Included in system:
- 105SMD - Surface Mount Device Removal System
Specifications:
- Length. 6-1/2" (16.5cm), 4 foot 18 AWG two-wire HPN cable cord
- Connects to Power Unit via Taper Pins.
- Replacement elements are .018" (.46mm)Ni-chrome.
Weight: 0.5LBS (0.225KGS)
Replacement Electrodes: Model # 105132, 105156

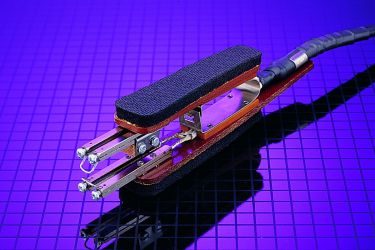

Thermal Wirestripping for wires 14 AWG and finer. Some elements mount at 90?for efficient stripping of tough insulations such as Teflon and other PTFE-based materials.
Included in systems:
- 10503 - Standard Capacity Resistance Wirestripping System
- 10503P - Production Capacity Resistance Wirestripping System
Specifications:
- Length 4 ?(11.5cm), 4 ft. cord
- Varieties of elements available
- Connects to Power Unit via Taper Pins.
- Integrated stop mechanism provides for strip length 1/8" to 1-1/2" (3.18 to 38.10mm)
- Accepts elements that mount at 45°or 90°
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10545
Single-loop element strips thermoplastics, including Teflon*, from wires between 18 to 12 AWG.
Specifications:
- Length 5"(12.7cm), Four foot (1.22m) 14 AWG two-wire HPN cable
- Connects to Power Units via Taper Pins
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 10593
Strips extruded insulation from wire 12 AWG to 4 AWG, including coaxial cable to RG-8/U.
Specifications:
- Length 7-1/2", Four foot (1.22m) 10 AWG High-strand DLO Cable
- Connects to Power Units via Taper Pins
Weight: 1.5LBS (0.675KGS)
Replacement Electrodes: Model # 10596

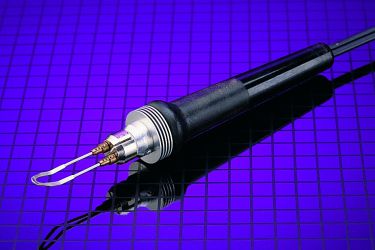

Reflow solder on PC boards; general rework, repair; replacement of flatpacks; scarfing or parting of epoxied materials.
Specifications:
- Connect to Power Unit via Taper Pins
- Length 5" (12.70cm), Four foot cord
Weight: 1.0LBS (0.45KGS)
Replacement Electrodes: Model # 105143

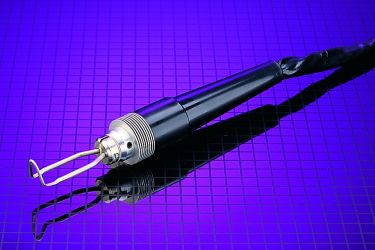

A tiny hand piece for soldering with 1/64" to 1/32" (.40 to .80mm) solder pads, or .001" to .010" (.025 to .25mm) dia. solder balls.
Specifications:
- Connects to Power Unit via Taper Pins
- Element loop is .012" (.30mm) diameter Ni-Chrome Wire
- Length 3.25" (8.25cm), 4 foot cord
- Limit power to minimal setting on 105A3
Weight: 0.4LBS (0.18KGS)
Replacement Electrodes: Model # 10531
