Model 10508
Common Applications: Micro miniature setups, terminations, small connections, micro-soldering in hard to reach areas.

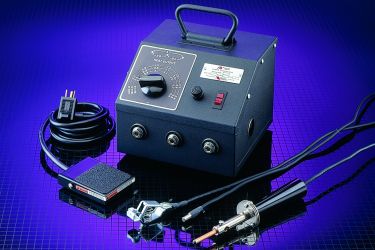

Components:
- 105A3 - 100 Watt Resistance Soldering Power Unit
- 10515 - 3/32" Diameter Single Carbon Handpiece
- 10512A - Lead for Return Current - Alligator Clamp
- 10519 - Footswitch
Specifications:
- 100W (2.65VAC) Power unit with Infinitely Variable Output control, Pilot light, 1 AMP Circuit Protection & Heavy-duty aluminum case, Available in 110 or 220V.
- Durable, User-friendly hand piece with four foot (1.22m) 10 AWG High strand DLO Cable. Standard Lead with Alligator clip.
- Copper clad, Carbon electrode, 3/32" (2.36mm)Dia., 3" Lgth.
- Rugged, Industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug.
Weight: 5.5LBS (2.475KGS)
Replacement Electrodes: Model # 10530
Common Applications: For general service in electrical equipment manufacture, rework or repair.
Components:
- 105B2 - 1,100 Watt Resistance Soldering Power Unit
- 10511 - Standard 1/4" Diameter Single Carbon Handpiece
- 10512 - Leads for Return Current - Standard Clamp
- 10519 - Footswitch
Specifications:
- 1,100W (5.8VAC) Power Unit with 23 Unique Output Settings, Lighted Rocker, 10 AMP Circuit Protection & Heavy-duty aluminum case, Available in 110 or 220V.
- Durable, User-friendly handpiece with four foot (1.22m) 10 AWG High strand DLO Cable. Standard lead with spring clip.
- Copper clad, carbon electrodes, 1/4" (6.35mm)Dia., 3" Lgth.
- Rugged, industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug.
Weight: 24.0LBS (10.8KGS)
Replacement Electrodes: Model # 10526
