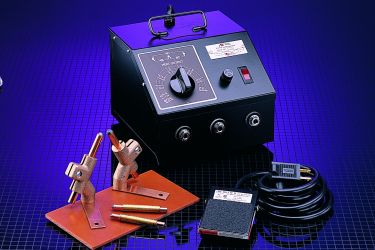

Common Applications: For soldering bus bars, lugs, starter and alternator leads, battery cables and similar electrical work

Components:

• 105B2 - 1,100 Watt Resistance Soldering Power Unit
• 10513A - Panel Attachement for 1,100 Watt Power Unit
• 10519 - Footswitch

Specifications:

• 1,100W (5.8VAC) Power Unit with 23 Unique Output Settings, Lighted Rocker, 10 AMP Circuit Protection & Heavy-duty Aluminum Case, Available in 110 or 220V.
• Panel Attachment fixes directly to power unit, bring work to unit.
• Includes 1/4" and 3/8" diameter copper clad carbon electrodes and two required Adapter Bushings.
• Rugged, Industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug.

Weight: 26.0LBS (11.7KGS)

Replacement Electrodes: Model # 10550

See Product Data Sheet

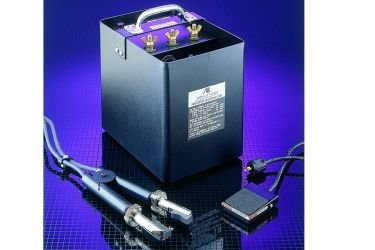

Common Applications: Strong enough for most plumbing, HVAC, large cable work, battery terminals, motor leads and stator applications. Sweat solder thin-wall copper tubing up to 1-1/2" diameter.

Components:

• 105C2 - 1,800 Watt Resistance Soldering Power Unit
• 10587 - Heavy-Duty High-Heat Carbon Pliers Handpiece
• 10518 - Twist-Lock Footswitch

Specifications:

• Three tap selectable power outputs of 500, 1300 and 1800W. (2.3 to 7.2VAC) Available in 110 or 220V.
• Durable, User-friendly hand piece with ten foot (3.1m) 6 AWG high-strand DLO cable.
• Hand piece connects to power unit with 3/8" ring terminal & stud/wing nut system to accommodate higher output range.
• Rugged, industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug.

Weight: 34.0LBS (15.3KGS)

Replacement Electrodes: Model # 10565

See Product Data Sheet

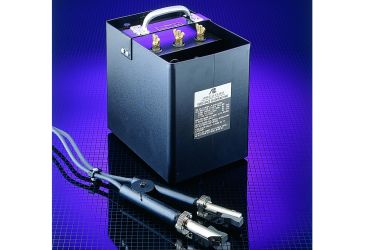

Common Applications: Our most powerful system for plumbing, HVAC, large cable work, battery terminals, motor leads and stator applications. Sweat solder thin-wall copper tubing up to 3" diameter.

Components:

• 105D1 - 3,000 Watt Resistance Soldering Power Unit
• 10587 - Heavy-Duty High-Heat Carbon Pliers Handpiece

Specifications:

• Three tap selectable power outputs of 1000, 2000 and 3000W. (4.0 to 10.1VAC) Available in 110 or 220V.
• Durable, User-friendly hand piece with ten foot (3.1m) 6 AWG high-strand DLO cable.
• Hand piece connects to power unit with 3/8" ring terminal & stud/wing nut system to accommodate higher output range.
• Concave Carbon Electrodes yield higher temperatures and allow for customization by grinding to fit application.
• No Footswitch included in this system.

Weight: 69.0LBS (31.05KGS)

Replacement Electrodes: Model # 10565

See Product Data Sheet
