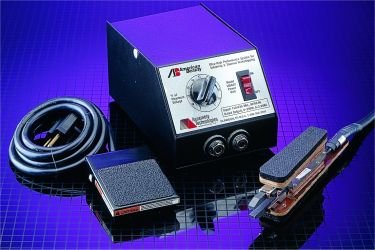

Common Applications: Wire Harness Assemblies for Larger AWG's. Copper Tubing, Semi-Rigid Coaxial Cable, Microwave Cable Connections and Terminal attachments all up to 3/16". Some Refrigeration Work.
Components:
- 105A12 - 250 Watt Resistance Soldering Power Unit
- 105158 - Small High-Heat Carbon Pliers Handpiece
- 10519 - Footswitch
Specifications:
- 250W (2.8VAC) Power unit with Infinitely Variable Output control, Lighted Rocker, 3 AMP Circuit Breaker & Heavy-duty aluminum case, Available in 110 or 220V.
- Durable, User-friendly hand piece with four foot (1.22m) AWG 14-2 HPN cord set. Appropriate for application up to 3/16" (4.72mm) diameter.
- Two carbon block electrodes provide more intense heat than tweezer style hand piece Model 105127.
- Rugged, Industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug.
Weight: 9.7LBS (4.365KGS)
Replacement Electrodes: Model # 105159

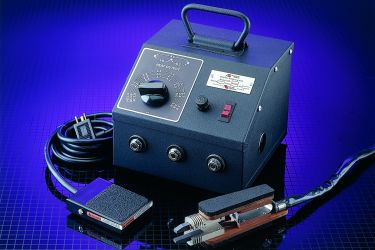

Common Applications: A sizable step-up from the 10506. Copper Tubing, Semi-Rigid Coaxial Cable, Microwave Cable Connections and Terminal Attachments all up to 1/2". Larger Military Connectors. Motor Stators and Electrical Motor Rebuilders.
Components:
- 105B2 - 1,100 Watt Resistance Soldering Power Unit
- 105258 - Medium High-Heat Carbon Pliers Handpiece
- 10519 - Footswitch
Specifications:
- 1,100W (5.8VAC) Power Unit with 23 Unique Output Settings, Lighted Rocker, 10 AMP Circuit Protection & Heavy-duty aluminum case, Available in 110 or 220V.
- Durable, User-friendly hand piece with four foot (1.22m) 10 AWG high-strand DLO cable.
- Two carbon block electrodes provide more intense heat than tweezer style hand pieces. Appropriate for application up to 9/16" (14.3mm) diameter.
- Rugged, industrial Footswitch with 6 foot (1.83m), three-wire cord and NEMA 5-15 P/R piggyback plug.
Weight: 25.0LBS (11.25KGS)
Replacement Electrodes: Model # 105159

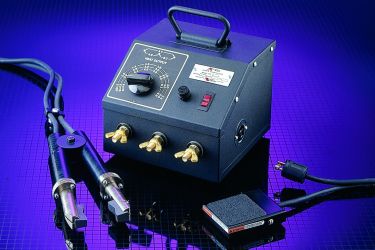

Common Applications: Thin Walled Copper Tubing up to 1-1/2". Heavy-Duty Applications where more critical control of intense heat is required. Large scale rebuilds. Operations involving significant heat sinks.
Components:
- 105C1TL - 1,800 Watt Resistance Soldering Power Unit
- 10587 - Heavy-Duty High-Heat Carbon Pliers Handpiece
- 10518 - Twist-Lock Footswitch
Specifications:
- 1,800W (6.9VAC) Maximum Output Power Unit with 23 Unique Power Settings, Lighted Rocker, 15 AMP Circuit Protection & Heavy-duty aluminum case. Available in 110 or 220V.
- Heavy-Duty, User-friendly hand piece constructed from Heat-Resistant Plastic with ten foot (1.22m) 6 AWG Power cord.
- Hand piece connects to power unit with 3/8" ring terminal & stud/wing nut system to accommodate higher output range.
- Concave Carbon Electrodes yield higher temperatures and allow for customization by grinding to fit application.
- Rugged, Industrial Footswitch with 10 foot (1.83m), two-wire Midget Twist Lock plug.
Weight: 34.0LBS (15.3KGS)
Replacement Electrodes: Model # 10565
